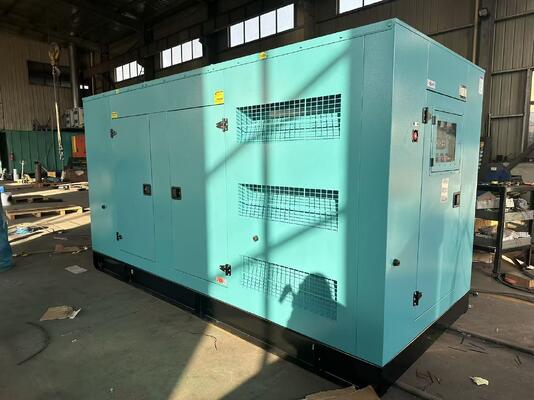

Yuchai Engine YC6MJ500L-D21 Silent type Diesel Generator Set 375KVA Power Generators

Yuchai Engine YC6MJ500L-D21 Silent type Diesel Generator Set 375KVA Power Generators

Nombre De La Marca:	Yuchai engine
Número De Modelo:	MB-300
Cuota De Producción:	1 pieza
Precio:	Price:Negotiable
Condiciones De Pago:	Western Union, T/T, D/P, L/C
Capacidad De Suministro:	200pcs/mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

ISO 9001:14000,CE,EACC

Nombre de marca::

Generador diésel Yuchai 300KW/375KVA

Tensión nominal::

230V/400V

Modelo del motor::

El número de unidades de seguridad de las unidades de seguridad de las unidades de seguridad de las

Corriente nominal::

540A

Frecuencia::

50HZ/60HZ

Marca del alternador::

Mbkl / wuxi standford / Stamford / leroy-somer

Panel de control::

Deepsea / Harsen / SmartGen

Certificado::

ISO 9001: 14000, CE

ATS::

Opcional

Entrega::

7-30 días

Tiempo de garantía::

1 año o 1000 horas de carrera (lo que llegue primero)

Velocidad::

1500rpm/1800rpm

Detalles de empaquetado:

Plástico envuelto en portadores de madera como requisitos del consumidor. LCL, 20 pies y 40 pies est

Capacidad de la fuente:

200pcs/mes

Resaltar:

Yuchai silent diesel generator set

375KVA power generator

YC6MJ500L-D21 diesel generator

Descripción del producto

Yuchai YC6MJ500L-D21 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset
Model	MB-300
Output Power	300KW/375KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	540A
Silent type Weight	4000kg (Net)
Silent type Dimensions	380016002040mm
Voltage	400/230V
Frequency	50Hz
Diesel Engine
Manufacturer	Yuchai Diesel Engine
Model	YC6MJ500L-D21
Rotate Speed	1500RPM
Power	334/367KW
Fuel Consumption	≤201.7g/kw.h
Cylinder/Stroke	131×145 mm
Compression Ratio	16.8:1
Displacement	11.73L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC4E
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Yuchai Engine YC6MJ500L-D21 Silent type Diesel Generator Set 375KVA Power Generators 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

Yuchai Engine YC6MJ500L-D21 Silent type Diesel Generator Set 375KVA Power Generators 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

Yuchai Engine YC6MJ500L-D21 Silent type Diesel Generator Set 375KVA Power Generators 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
