50KVA ISO 9001:14000 CE Certified Open Diesel Generator Set with Reliable Performance

50KVA ISO 9001:14000 CE Certified Open Diesel Generator Set with Reliable Performance

Nombre De La Marca:	Likaduo engine
Número De Modelo:	MB-40
Cuota De Producción:	1 unidad
Precio:	Price:Negotiable
Condiciones De Pago:	Western Union, T/T, D/P, L/C
Capacidad De Suministro:	200pcs/mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

ISO 9001:14000,CE,EACC

Marca de marca::

Generador diésel Likaduo 40KW/50kva

Voltaje nominal::

230V/400V

Modelo del motor::

LKD40

Corriente nominal::

72a

Frecuencia::

50Hz/60Hz

Marca del alternador::

Mbkl / wuxi standford / Stamford / leroy-somer

Panel de control::

Deepsea / Harsen / SmartGen

Certificado::

ISO 9001: 14000, CE

ATS::

Opcional

Entrega::

7-30 días

Tiempo de garantía::

1 año o 1000 horas de carrera (lo que llegue primero)

Velocidad::

1500 rpm/1800rpm

Detalles de empaquetado:

Plástico envuelto en portadores de madera como requisitos del consumidor. LCL, 20 pies y 40 pies est

Capacidad de la fuente:

200pcs/mes

Resaltar:

50KVA Diesel Generator Set

ISO 9001:14000 Open Diesel Generator

CE Certified Power Generator

Descripción del producto

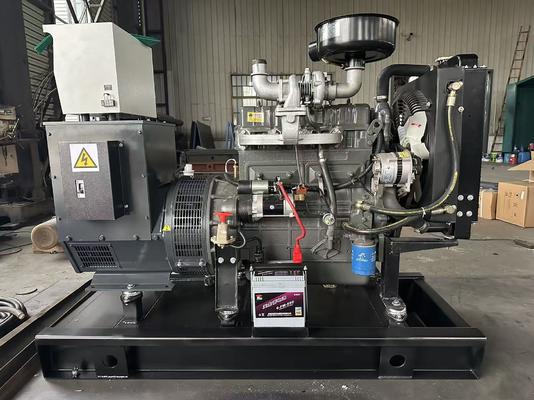

40KW Likaduo Open-type Diesel Generator Set

High-quality power generator with reliable performance and easy maintenance.

Key Features

Full control panel with power indicator light and oil light
Emergency shutdown for low oil pressure and high water temperature
Large fuel tank ensures continuous running
Low noise & vibration operation
Compact structure design
Reliable performance
Easy installation and maintenance

Painting Process

Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.

Generator Specifications

Model	MB-40
Output Power	40KW / 50KVA
Power Factor	COSΦ=0.8 (lagging)
Maximum Output Current	72 A
Weight	700KG
Dimensions	17005801250mm
Voltage	400/230V
Frequency	50Hz

Diesel Engine Specifications

Manufacturer	Likaduo Diesel Engine
Model	LKD40
Rotate Speed	1500RPM
Power	56KW
Fuel Consumption	≤258g/kw.h
Cylinder/Stroke	100/115mm
Compression Ratio	19:1
Displacement	3.61L
Configuration	4-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter

Alternator Specifications

Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC22B
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Our Manufacturing Capabilities

Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins, with over 80 years of experience, is a world-leading supplier of diesel and gas engines in the 4 - 1800 kW market. Their key strength lies in customizing engines to precisely meet customer requirements, making their solutions trusted by over 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and power generation markets.

Our factory partners with world-renowned engine manufacturers including CCEC, DCEC, VOLVO, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, and Jichai. With over 20 years of specialization in synchronous 100% copper wire alternators, our MB brand alternators have gained global recognition. Our generator power range spans from 6.5KW to 2000KW.

For more details about our diesel generator sets, please contact us anytime.
Your further inquiries are always welcome!
