400kVA Cummins QSNT-G3 Engine Diesel Generator Set ISO 9001:14000 Certified Power Solution

400kVA Cummins QSNT-G3 Engine Diesel Generator Set ISO 9001:14000 Certified Power Solution

Nombre De La Marca:	Cummins
Número De Modelo:	QSNT-G3
Cuota De Producción:	1 unidad
Precio:	Price:Negotiable
Condiciones De Pago:	Western Union, T/T, D/P, L/C
Capacidad De Suministro:	200pcs/mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

PORCELANA

Certificación:

ISO 9001:14000,CE,EACC

Lugar de origen::

Jiangsu China

Marca de marca::

El MBKL

Voltaje nominal::

230V/400V

Modelo del motor::

El número de unidades de producción es el siguiente:

Corriente nominal::

Frecuencia::

50Hz/60Hz

Alternador::

Stamford/ LEROY-SOMER/ MBKL

Panel de control::

Deepsea / Harsen / SmartGen

Certificado::

ISO 9001: 14000, CE

ATS::

Opcional

Entrega::

7-30 días

Tiempo de garantía::

1 año

Dimensión de Genset::

3300*1150*1800mm

Peso de Genset::

3000 kg

Velocidad::

1500 rpm/1800rpm

Número de modelo::

MB-320

Detalles de empaquetado:

Plástico envuelto en portadores de madera como requisitos del consumidor. LCL, 20 pies y 40 pies est

Capacidad de la fuente:

200pcs/mes

Resaltar:

400kVA Diesel Generator Set

Cummins QSNT-G3 Engine Diesel Genset

1500rpm/1800rpm Cummins Generator

Descripción del producto

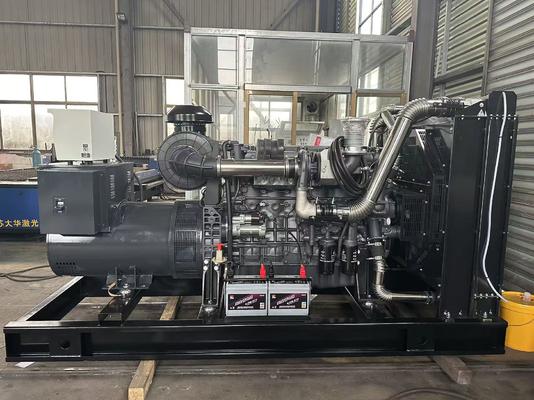

Cummins QSNT-G3 Engine Diesel Generator Sets - 400kVA Power Solution

High Quality Brushless Diesel Generator Sets

Featuring Cummins Engine with Smartgen Control System, available in both Open and Soundproof configurations.

Genset Specifications

Parameter	Value
Model	MB-320
Output Power	320KW/400KVA
Power Factor	COSΦ=0.8 (lagging)
Maximum Output Current	576A
Weight	3000kg (Net)
Dimensions	3300×1150×1800mm
Voltage	400/230V
Frequency	50Hz

Diesel Engine Specifications

Parameter	Value
Manufacturer	Cummins Diesel Engine
Model	QSNT-G3
Rotate Speed	1500RPM
Power	358KW/392KW
Fuel Consumption	≤ 205g/kw.h
Cylinder/Stroke	140×152 mm
Compression Ratio	16.7:1
Displacement	14L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter

Alternator Specifications

Parameter	Value
Manufacturer	LEROY-SOMER Alternator
Model	TAL-A473-A
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Key Features

Easy operation, simple maintenance, and low operating costs
Compact structure with high-strength chassis and aesthetic design
Advanced damping system for smooth operation
Compliant with international electrical safety standards
8-hour continuous operation with base fuel tank
High-performance maintenance-free batteries with isolation switch
50℃ radiator for optimal cooling
Forklift bottom hole design for easy transportation
Industrial-grade muffler system
Noise reduction structure for low operational noise
Convenient power output and ATS interfaces
IP56 protection for control system
Customizable design options available

Mingbang Diesel Generator Set Factory

About Mingbang Intelligent Technology

Established in 2005, Mingbang Intelligent Technology Co., LTD occupies 5042 square meters in Yangzhou city, Jiangsu Province - the heart of China's manufacturing industry zone near Shanghai.

We maintain close partnerships with leading power manufacturers including Cummins, Perkins, Deutz, Volvo, and Chinese brands SDEC, Yuchai, and Jichai. Our generator sets feature alternators from Stamford, Marathon, Leroy-Somer, and MBKL.

Our comprehensive inventory ranges from 10KVA to 3000KVA, including silent generators, open generators, container generators, and mobile gensets.

Whether you need power solutions for offices, residential developments, industrial projects, shopping centers, hospitals, railways, prisons, hotels, airports, or bank data centers, Mingbang provides the most reliable and cost-efficient generators and accessories.

Our Customers

For More Information

We welcome your orders and look forward to serving your power generation needs.
